SyncGEO - GNSS Analysis Tool
SyncGEO - GNSS Analysis Tool

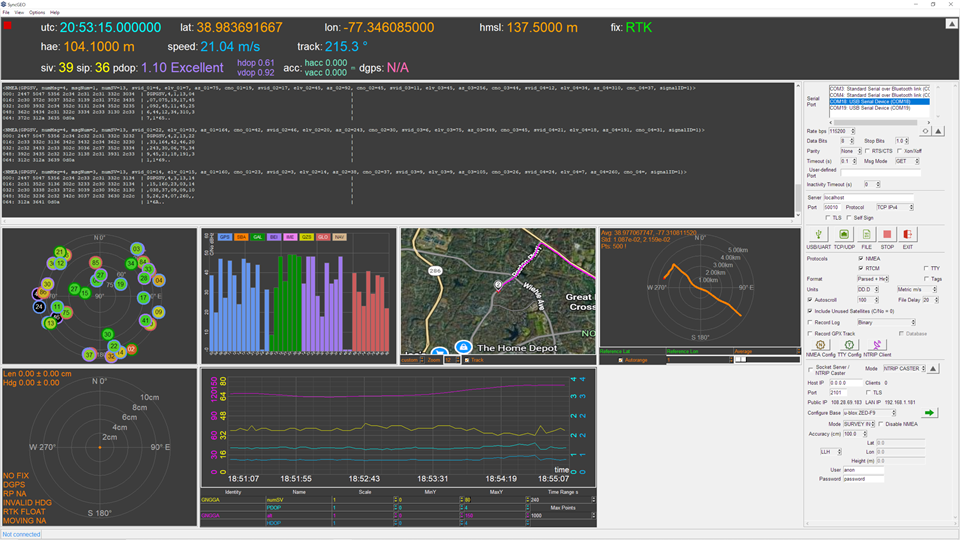

SyncGEO is an advanced GNSS software suite used to configure, evaluate, log, and analyze Syncwise GNSS receivers. The tool allows system integrators and end users to assess and test the navigation and positioning performance of the G1, G5, and G8 families of SyncIoT positioning modules.
The main features of SyncGEO include:
- Testing the performance of SyncIoT and other GNSS receivers.
- Configuring SyncIoT GNSS modules.
- Recording navigation output to log files for later analysis.
The software is a self-contained, portable executable that does not require installation.
No internet connection is required to use the software. When available, the software can connect to remote receivers via TCP/IP or UDP/IP and receive RTCM corrections from an NTRIP server.
